Parametric Box

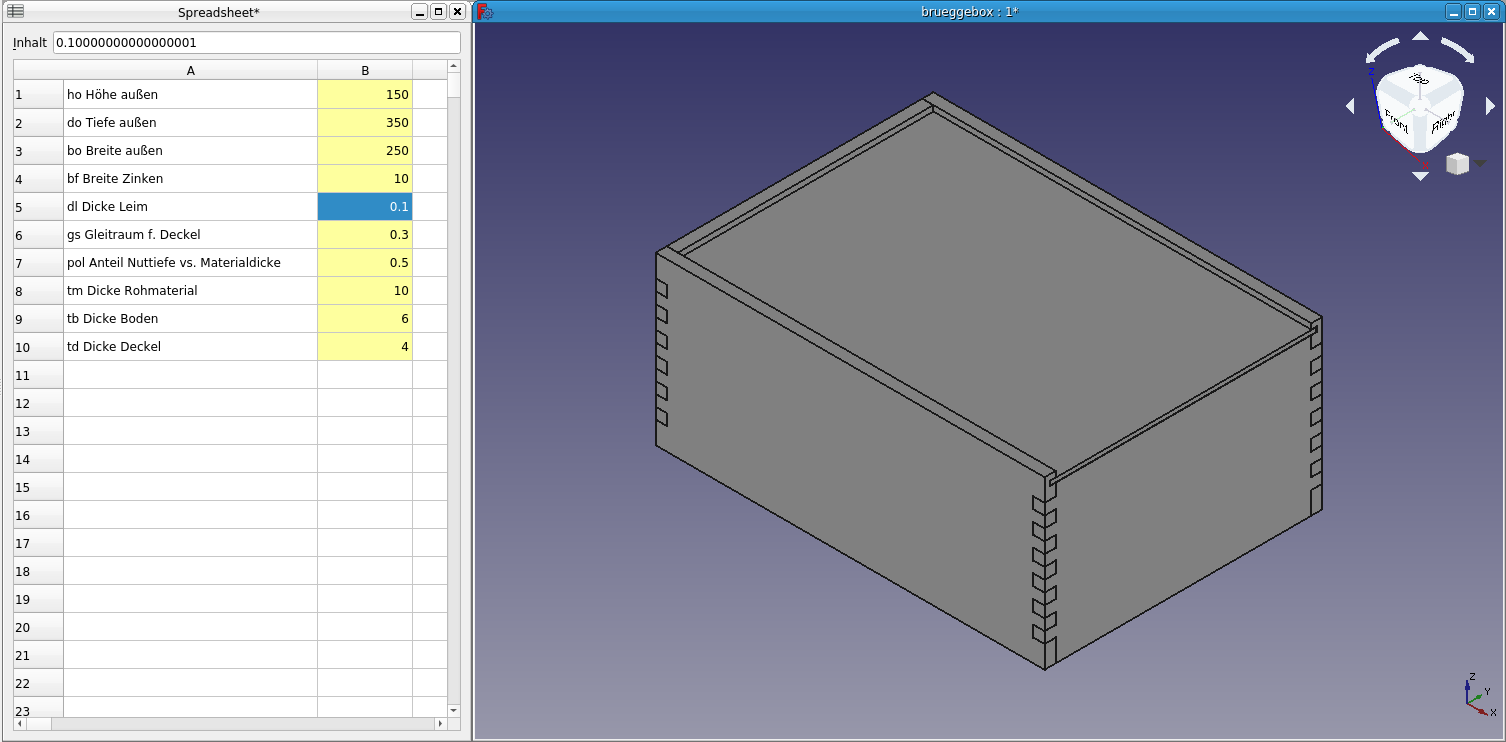

This FreeCad project generates a box with a sliding lid and finger-shaped interlocking joints. It is designed to be manufactured on a CNC mill.

The following parameters can be set in the spreadsheet:

  • height (outer dimension)
  • width (outer dimension)
  • depth (outer dimension)
  • finger width
  • clearance for glued parts
  • clearance for sliding lid
  • slot depth in relation to material thickness
  • material thickness (sides)
  • material thickness (bottom)
  • material thickness (top)

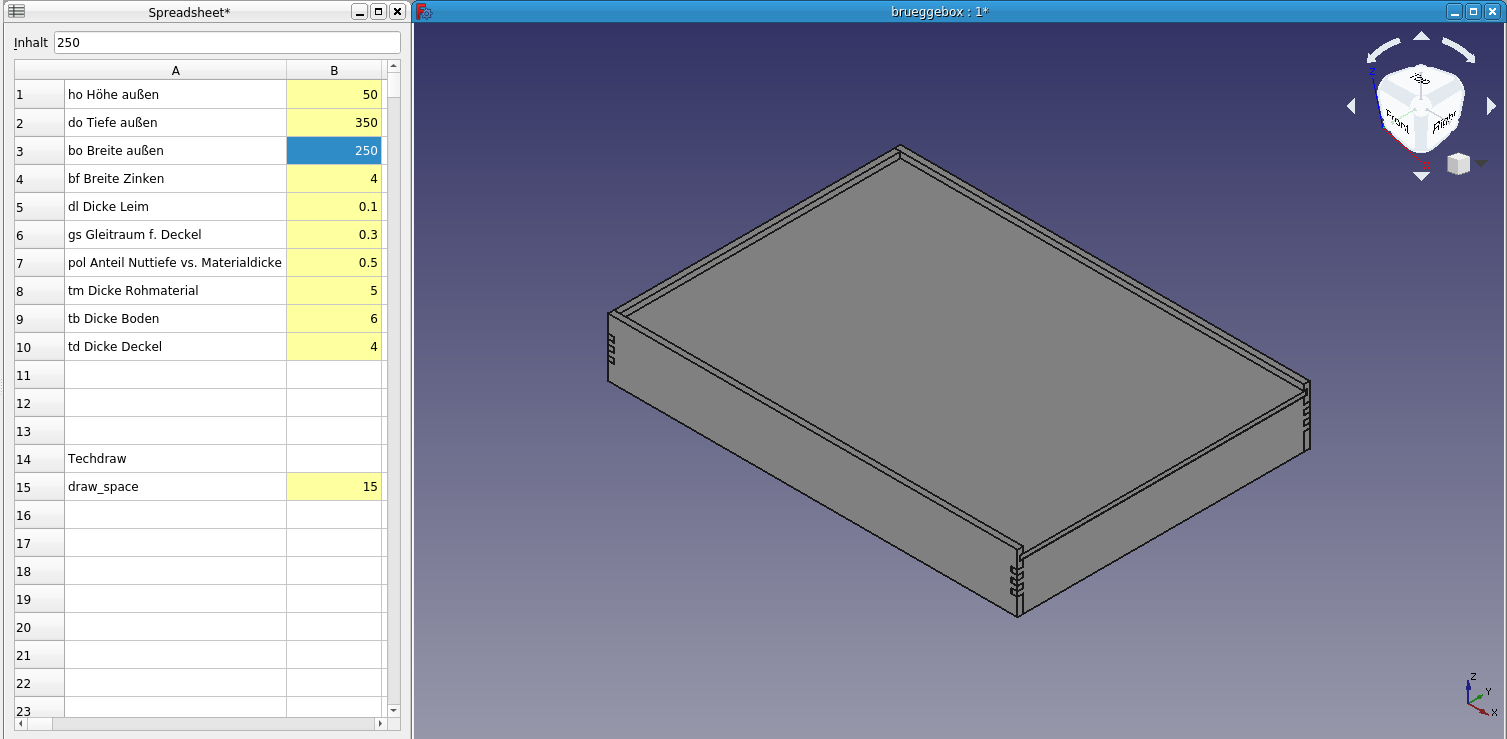

Example for a very flat box

notice: The height and the finger width must be choosen in a way that at least three fingers can fit on a corner edge

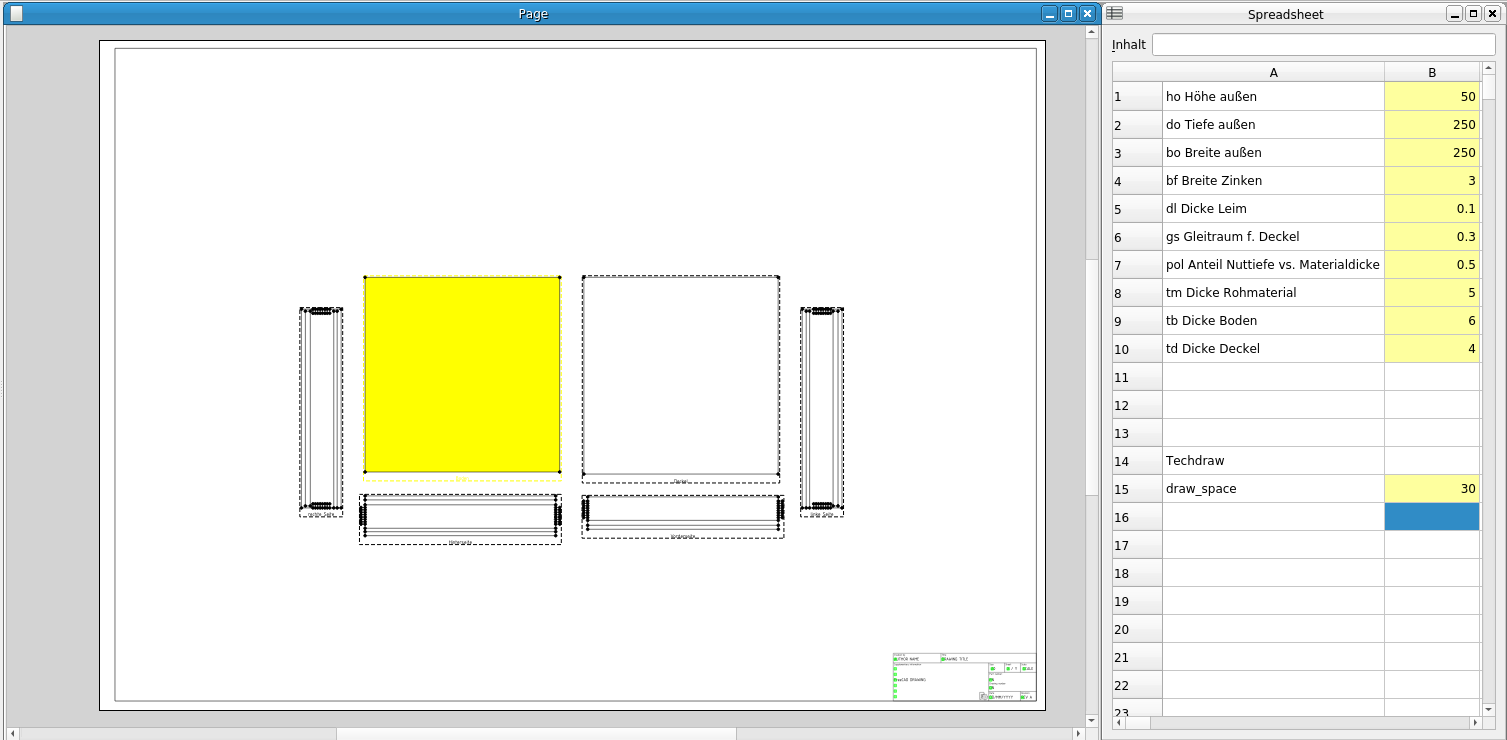

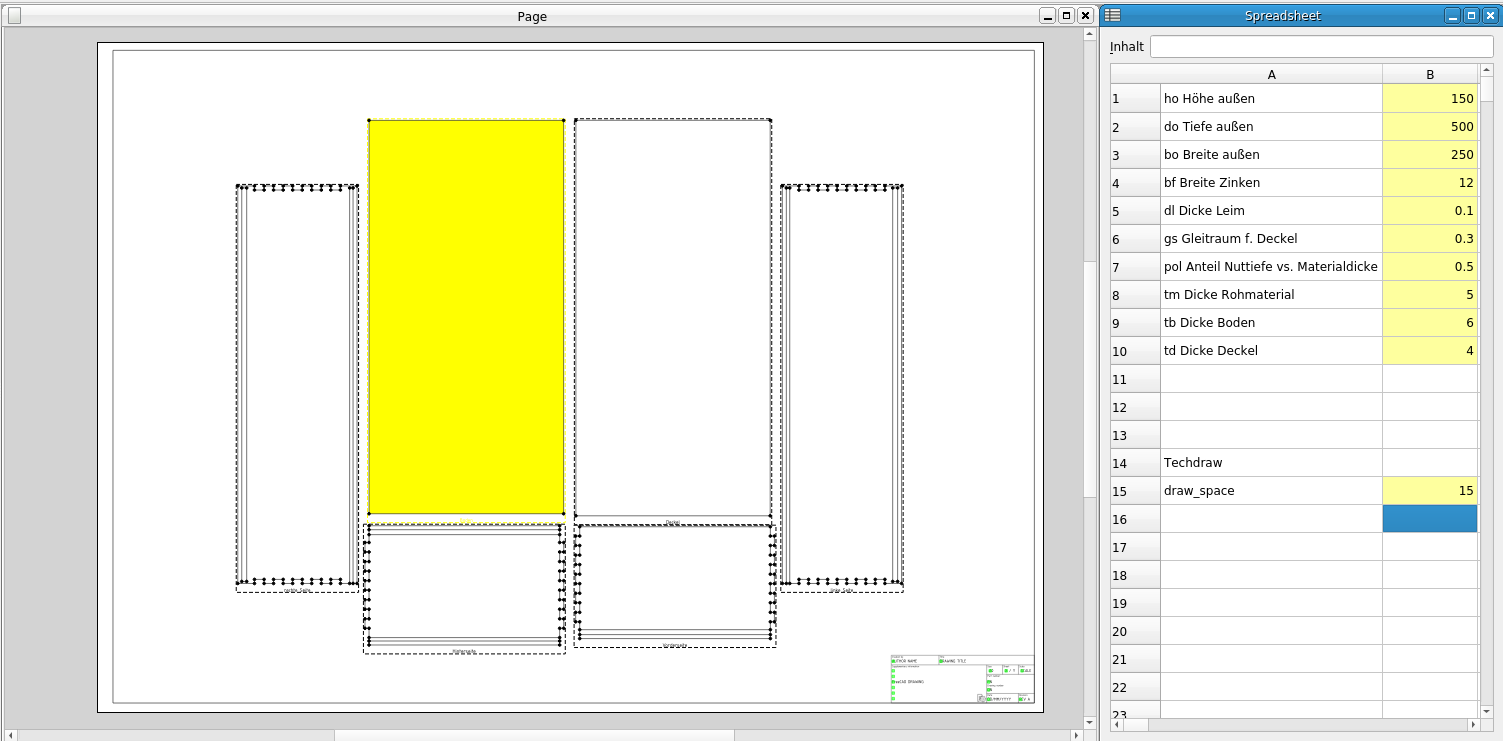

TechDraw

The project includes a TechDraw page, which can be used for CNC-milling when exported as .dxf. All Views are updated and placed automaticly, when parameters are changed. Spacing can be adjusted in the Spreadsheet
